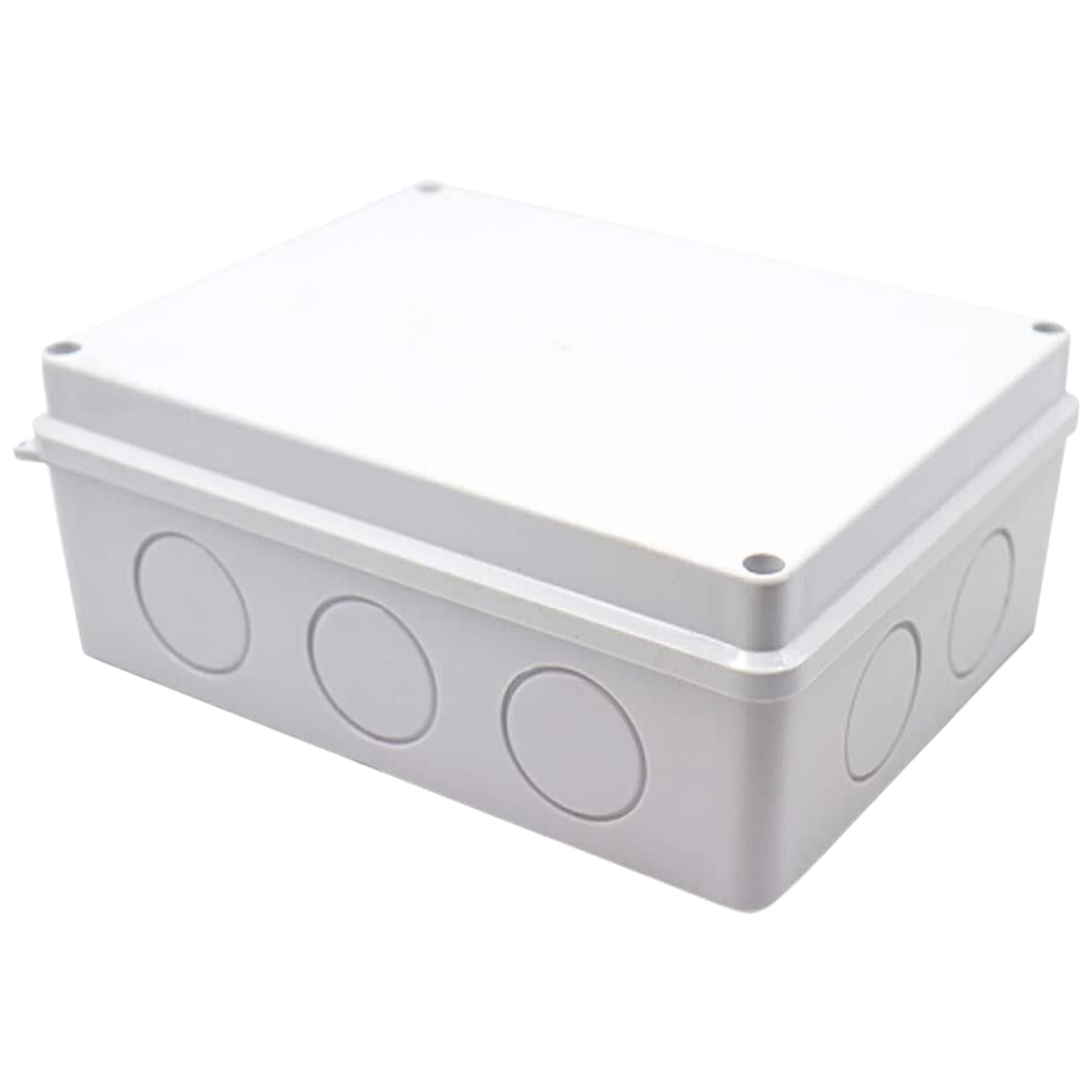

Knock-out Cable Entry Surface Mounted Opaque Cover

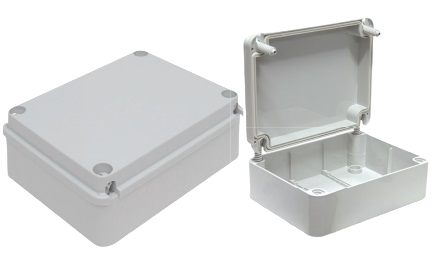

Our surface-mounted junction boxes with ABS opaque covers and knock- out cable entry provide an easy-to-use solution for electrical installations in industrial and outdoor settings. The knock-out cable entry points make it simple to create entry points for speciﬁc gland ﬁttings, while the opaque cover provides additional protection to the components within the box. Made of high-quality and durable materials, these junction boxes are built to withstand harsh environmental conditions.

Surface Mounted, ABS Opaque, Knock-out Cable Entry - IP44
	Item Code	Raw Material	Dimension (mm)	Ingress Protection	Cable Entry	Cover
	QPJ- 00000K- 000	ABS	70x40	IP44	Knock-out	Opaque
	QPJ- 00000L- 000	ABS	85x45	IP44	Knock-out	Opaque

Surface Mounted, ABS Opaque, Knock-out Cable Entry - IP54
Item Code	Raw Material	Dimension (mm)	Ingress Protection	Cable Entry	Cover
QPJ- 00000N- 000	ABS	80x120x50	IP54	Knock-out	Opaque
QPJ- 00000O- 000	ABS	100x100x50	IP54	Knock-out	Opaque
QPJ- 00000P- 000	ABS	150x110x70	IP54	Knock-out	Opaque
QPJ- 00000Q- 000	ABS	150x150x70	IP54	Knock-out	Opaque
QPJ- 00000R- 000	ABS	190x145x80	IP54	Knock-out	Opaque
QPJ- 00000S- 000	ABS	80x120x120	IP54	Knock-out	Opaque
QPJ- 00000T- 000	ABS	100x100x120	IP54	Knock-out	Opaque
QPJ- 00000U- 000	ABS	150x110x140	IP54	Knock-out	Opaque

Surface Mounted, ABS Opaque, Knock-out Cable Entry - IP55
Item Code	Raw Material	Dimension (mm)	Ingress Protection	Cable Entry	Cover
QPJ- 00000V- 000	ABS	90x43x40	IP55	Knock-out	Opaque
QPJ- 00000W- 000	ABS	75x75x40	IP55	Knock-out	Opaque
QPJ- 00000X- 000	ABS	85x85x40	IP55	Knock-out	Opaque

Surface Mounted, ABS Opaque, Knock-out Cable Entry - IP67
Item Code	Raw Material	Dimension (mm)	Ingress Protection	Cable Entry	Cover
QPJ-00000Y-000	ABS	80x120x50	IP67	Knock-out	Opaque
QPJ-00000Z-000	ABS	100x100x50	IP67	Knock-out	Opaque
QPJ-000010-000	ABS	150x110x70	IP67	Knock-out	Opaque
QPJ-000011-000	ABS	150x150x70	IP67	Knock-out	Opaque
QPJ-000012-000	ABS	190x145x80	IP67	Knock-out	Opaque
QPJ-000013-000	ABS	80x120x120	IP67	Knock-out	Opaque
QPJ-000014-000	ABS	110x110x70	IP67	Knock-out	Opaque
QPJ-000015-000	ABS	250x200x90	IP67	Knock-out	Opaque
QPJ-000016-000	ABS	310x230x130	IP67	Knock-out	Opaque
QPJ-000017-000	ABS	100x100x120	IP67	Knock-out	Opaque
QPJ-000018-000	ABS	150x110x140	IP67	Knock-out	Opaque
QPJ-000019-000	ABS	190x145x140	IP67	Knock-out	Opaque
QPJ-00001A-000	ABS	250x200x160	IP67	Knock-out	Opaque
QPJ-00001B-000	ABS	310x230x180	IP67	Knock-out	Opaque
